Nokia 5110 Screen

A classic 84x48 pixel monochrome LCD screen, originally used in the iconic Nokia 5110 mobile phone.

Component Preview

Nokia 5110

The Nokia 5110 is a basic graphic LCD screen for lots of applications. It uses the PCD8544 controller, which is the same one used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns.

DisplaysMonochromeSPI

Overview

This display is inexpensive, easy to use, requires only a few digital I/O pins, and consumes very little power. It interfaces to microcontrollers through a serial SPI-like protocol.

WARNING

Voltage Limits: The physical Nokia 5110 is typically a 3.3V device. Supplying 5V to the VCC or logic pins on real hardware might damage it. (The simulator tolerates 5V logic for convenience, but you should still wire VCC to 3.3V).

Pin Reference

Pin	Type	Description
VCC	power	Power Supply (3.3V).
GND	power	Ground. Connect to Arduino GND.
SCE	digital	Chip Enable (Active Low).
RST	digital	Reset.
DC	digital	Data / Command selection.
DN	digital	Data In (MOSI).
SCLK	digital	Serial Clock.
LED	power	Backlight Power (3.3V).

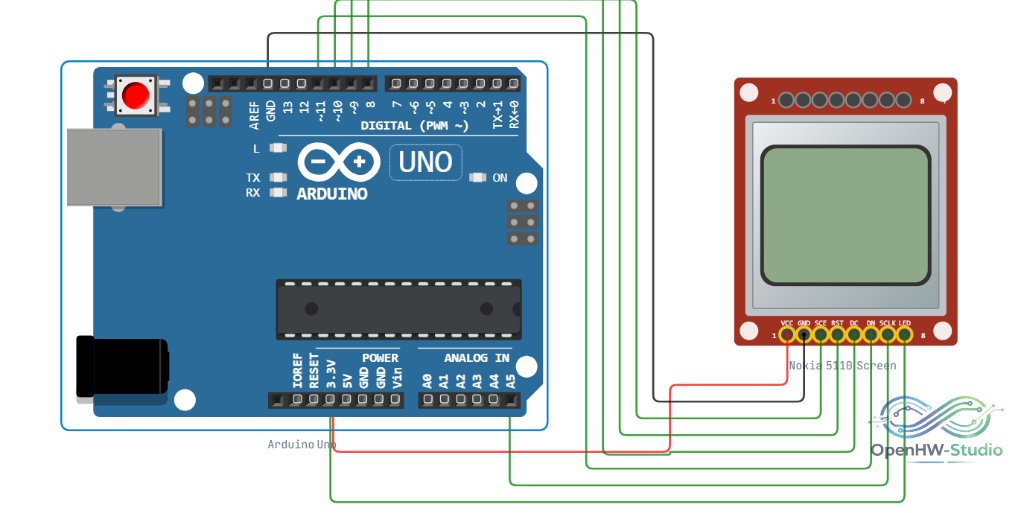

Wiring Diagram

1. Connect VCC and LED to 3.3V.
2. Connect GND to GND.
3. Connect SCE to Arduino D7.
4. Connect RST to Arduino D6.
5. Connect DC to Arduino D5.
6. Connect DN (MOSI) to Arduino D11.
7. Connect SCLK to Arduino D13.

Example Arduino Code

You can use the Adafruit PCD8544 and Adafruit GFX libraries to easily draw text and shapes on this screen.

#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_PCD8544.h>

// Software SPI (slower updates, more flexible pinout):
// pin 13 - Serial clock out (SCLK)
// pin 11 - Serial data out (DIN)
// pin 5 - Data/Command select (D/C)
// pin 7 - LCD chip select (CS)
// pin 6 - LCD reset (RST)
Adafruit_PCD8544 display = Adafruit_PCD8544(13, 11, 5, 7, 6);

void setup() {
  display.begin();

  // You can change the contrast around to adapt the display
  // for the best viewing!
  display.setContrast(50);

  display.clearDisplay();

  display.setTextSize(1);
  display.setTextColor(BLACK);
  display.setCursor(0,0);
  display.println("OpenHW Studio!");
  display.display();
}

void loop() {
  // Main code
}

---
