Stepper Motor (Bipolar)

A brushless DC electric motor that divides a full rotation into a number of equal steps, ideal for 3D printers and CNC machines.

Component Preview

NEMA 17 Style

A bipolar stepper motor has two internal coils. By energizing these coils in a specific sequence, the motor shaft turns one precise "step" at a time. It requires a dedicated stepper motor driver (like the A4988) to handle the complex sequencing and high currents.

ActuatorsMotorPositioning

Overview

Unlike a standard DC motor which spins continuously when power is applied, a stepper motor is commanded to move a specific number of steps. Standard hobby steppers often have 200 steps per revolution (1.8° per step).

Pin Reference

Pin	Type	Description
A-	digital	Coil A End. Connects to stepper driver Output 1A.
A+	digital	Coil A Start. Connects to stepper driver Output 1B.
B+	digital	Coil B Start. Connects to stepper driver Output 2A.
B-	digital	Coil B End. Connects to stepper driver Output 2B.

Configurable Attributes

Attribute	Type	Default	Description
step_angle	number	1.8	Degrees of rotation per single step (e.g., 1.8 for 200 steps/rev).

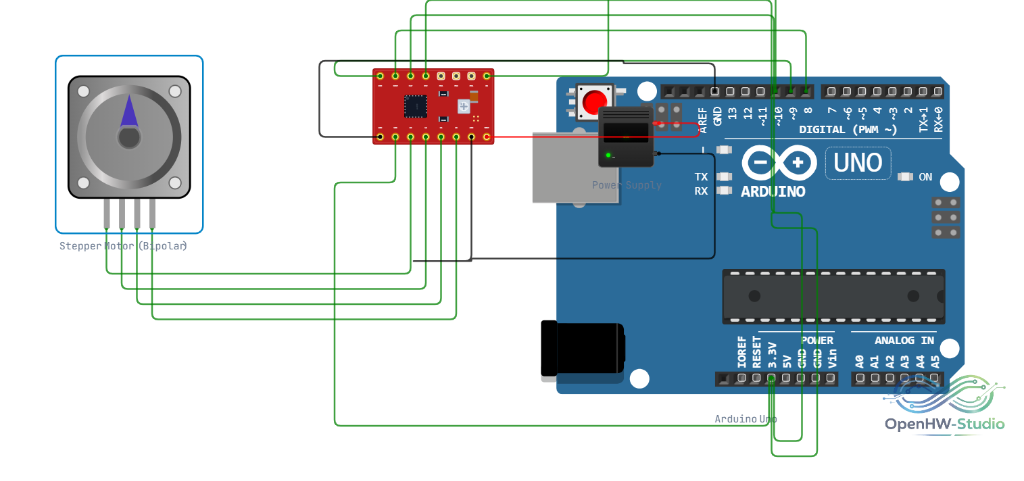

Wiring Diagram (With A4988 Driver)

You cannot connect a bipolar stepper directly to an Arduino. You must use a driver module like the A4988.

Example Arduino Code

This example uses the popular AccelStepper library to control an A4988 driver, which in turn controls the bipolar stepper motor.

#include <AccelStepper.h>

// Define stepper motor connections and motor interface type
// Interface type 1 means a stepper driver (with Step and Direction pins)
#define dirPin 4
#define stepPin 3
#define motorInterfaceType 1

AccelStepper stepper(motorInterfaceType, stepPin, dirPin);

void setup() {
  Serial.begin(9600);

  // Set the maximum speed in steps per second
  stepper.setMaxSpeed(1000);
  // Set acceleration in steps per second per second
  stepper.setAcceleration(500);

  Serial.println("Stepper Motor Ready.");
}

void loop() {
  // If the motor has reached its target position
  if (stepper.distanceToGo() == 0) {
    // If it's at the starting point, go to position 200 (1 full rotation if 1.8 deg/step)
    if (stepper.currentPosition() == 0) {
      Serial.println("Moving Forward...");
      stepper.moveTo(200);
    }
    // Otherwise, return to starting point
    else {
      Serial.println("Moving Backward...");
      stepper.moveTo(0);
    }
    delay(1000); // Wait a second before moving again
  }

  // This must be called frequently to make the motor move
  stepper.run();
}

Simulation Notes

• In the simulator, the stepper motor visually rotates to match the calculated physical position based on the coil energization sequences. You can combine it with the A4988 driver module for a realistic CNC/3D-printer simulation stack.

---
