Raindrop Module

A sensor that detects water droplets and outputs both analog and digital signals.

Component Preview

LM393 Module

The Raindrop sensor consists of two parts: a large exposed pad that catches water droplets, and a control module powered by an LM393 comparator. When water touches the pad, it lowers the resistance between its interlaced tracks. The module offers an Analog Output (AO) representing the moisture level, and a Digital Output (DO) that triggers when a specific threshold is reached.

SensorsLiquidWeather

Overview

This module is frequently used in smart weather stations or automatic window closers. The blue trimpot allows you to manually adjust the threshold for the Digital Output (DO). In real life, the DO pin goes LOW when water is detected and HIGH when dry.

Pin Reference

Pin	Type	Description
AO	analog	Analog output. Voltage decreases as more water is detected.
DO	digital	Digital output. Goes LOW (0V) when the rain level exceeds the threshold.
GND	power	Ground connection. Connect to Arduino GND.
VCC	power	Power input. Connect to Arduino 5V.

Configurable Attributes

Attribute	Type	Default	Description
threshold	number	300	The internal comparator threshold (0-1023) to trigger the DO pin.

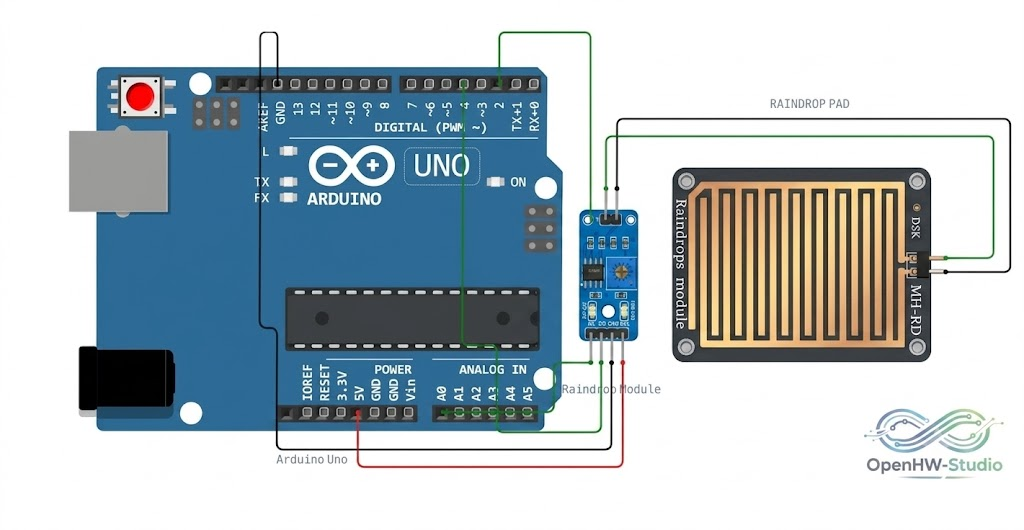

Wiring Diagram (Arduino Uno)

1. Connect VCC to Arduino 5V.
2. Connect GND to Arduino GND.
3. Connect AO to Arduino A0 (to measure the rain level).
4. Connect DO to Arduino D2 (to trigger an interrupt or digital read).
5. Ensure the Raindrop Pad is connected to the top pins of the module.

Example Arduino Code

This sketch reads the analog rain level and checks the digital threshold pin to trigger a simple alert.

const int analogPin = A0;   // AO pin
const int digitalPin = 2;   // DO pin

void setup() {
  pinMode(digitalPin, INPUT);
  Serial.begin(9600);
}

void loop() {
  int analogValue = analogRead(analogPin);
  int digitalValue = digitalRead(digitalPin);

  Serial.print("Analog Rain Level: ");
  Serial.print(analogValue);

  // Remember: DO is active LOW
  if (digitalValue == LOW) {
    Serial.println(" --> 🌧️ Rain detected!");
  } else {
    Serial.println(" --> ☀️ Dry");
  }

  delay(500);
}

Simulation Notes

• The simulator provides an interactive UI panel for the module. Click on it to adjust the simulated rainLevel using the slider.
• As the rain level crosses your configured threshold, the DO LED will turn bright blue, and the DO pin will immediately drop to 0V (LOW).
• You can right-click the module to set the threshold via the context menu.

---
