16-Channel PWM Module (PCA9865)

A standard 16-channel pwm module (pca9865) used for electronic prototyping.

Component Preview

Module

This is the 16-Channel PWM Module (PCA9865) component available in the OpenHW Studio Simulator.

Logic ComponentsComponent

Pin Reference

Pin	Type	Description
GND	power	Ground.
OE	input	Output Enable. Active low. Connect to GND to enable outputs.
SCL	input	I2C Clock line.
SDA	input	I2C Data line.
VCC	power	Logic Power Supply (usually 5V).
V+	power	Motor/Servo Power Supply (often 5V to 6V).

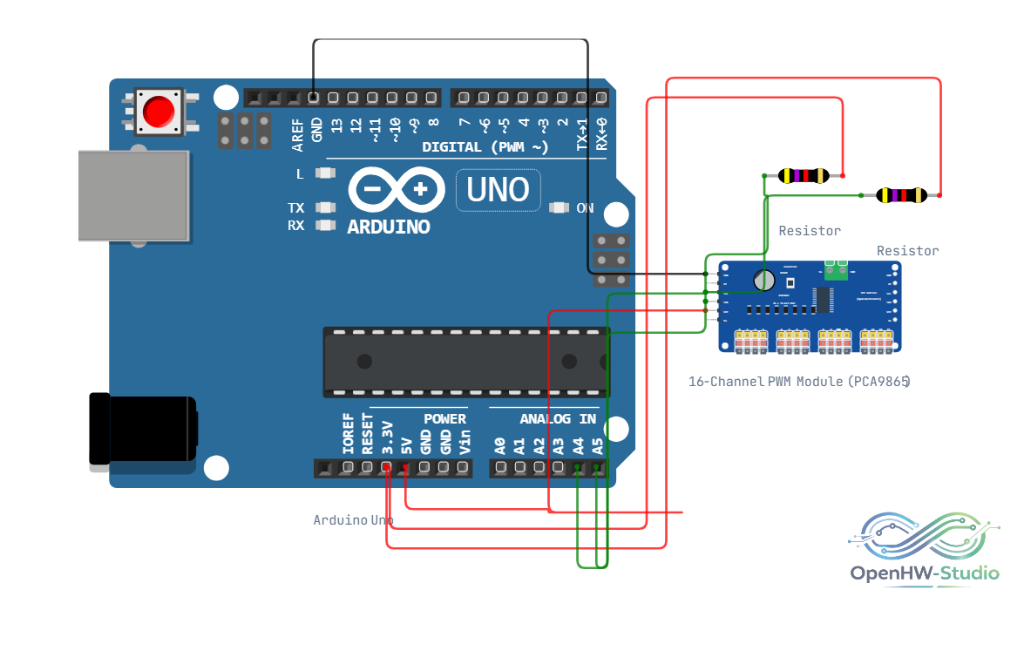

Wiring Diagram

Example Arduino Code

#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>

Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();

void setup() {
  Serial.begin(9600);
  pwm.begin();
  pwm.setPWMFreq(50); // Typical for servos
}

void loop() {
  // Drive channel 0 to minimum pulse
  pwm.setPWM(0, 0, 150);
  delay(1000);

  // Drive channel 0 to maximum pulse
  pwm.setPWM(0, 0, 600);
  delay(1000);
}
